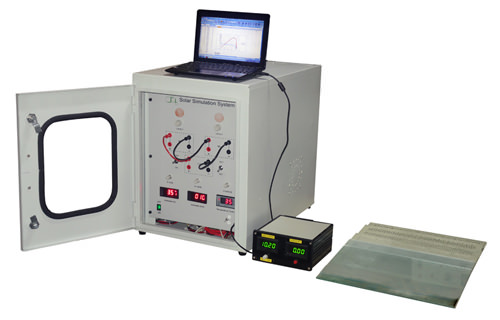

Product Description

The I-V (current-voltage) curve of a PV module describes its energy conversion capability at the existing conditions of the light intensity level and ambient temperature.
This set up gives an idea about the I-V curve characteristics of a PV module which depend on the following

• Series and parallel combination
• Different light intensity level
• Temperature level
• Dark condition of PV module

Product Features

• Appropriate simple assembly design to provide control conditions (temperature, light intensity) in a chamber
• Four quadrant rheostat to understand the dark characteristics of the Solar Cells
• Proper arrangement for efficient analysis of input and output parameters
• Light Intensity and temperature adjustment feature to simulate the conditions as per the requirement
• Inbuilt Solar IV Tracer for automatic graphical representation
