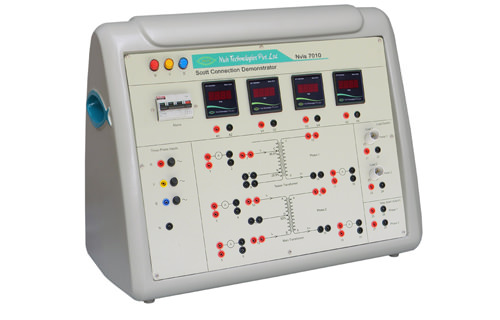

    Scott Connection Trainer

    Nvis 7010

    Product Description

    Nvis 7010 Scott Connection Demonstrator is a vital training system for the Electrical Laboratories. It provides comprehensive learning of Three Phase to Two Phase Conversion in a very simple manner. It helps to study and analyze the operation of Teaser Transformer and Main Transformer.

    Students can per for m stand alone operations and observe the two phase step down waveforms on oscilloscope, which will have 90° phase displacement with each other

    Product Features

    • Main and Teaser Transformer are shown separately
    • Two Phase Step down Outputs for Waveform Observation
    • Control board consist of high grade FRP material to provide utmost safety to the users
    • Equipped with supply indication lamps
    • Provided with bulb holder to use load externally
    • Designed by considering all the safety standards
    • Diagrammatic representation for the ease of connections
    • Exclusive and Attractive Design
    • Online Product Tutorial
    Scope of Learning
    • Study of Teaser & Main Transformer
    • Study of Scott Connection (Three Phase to Two Phase Conversion)
