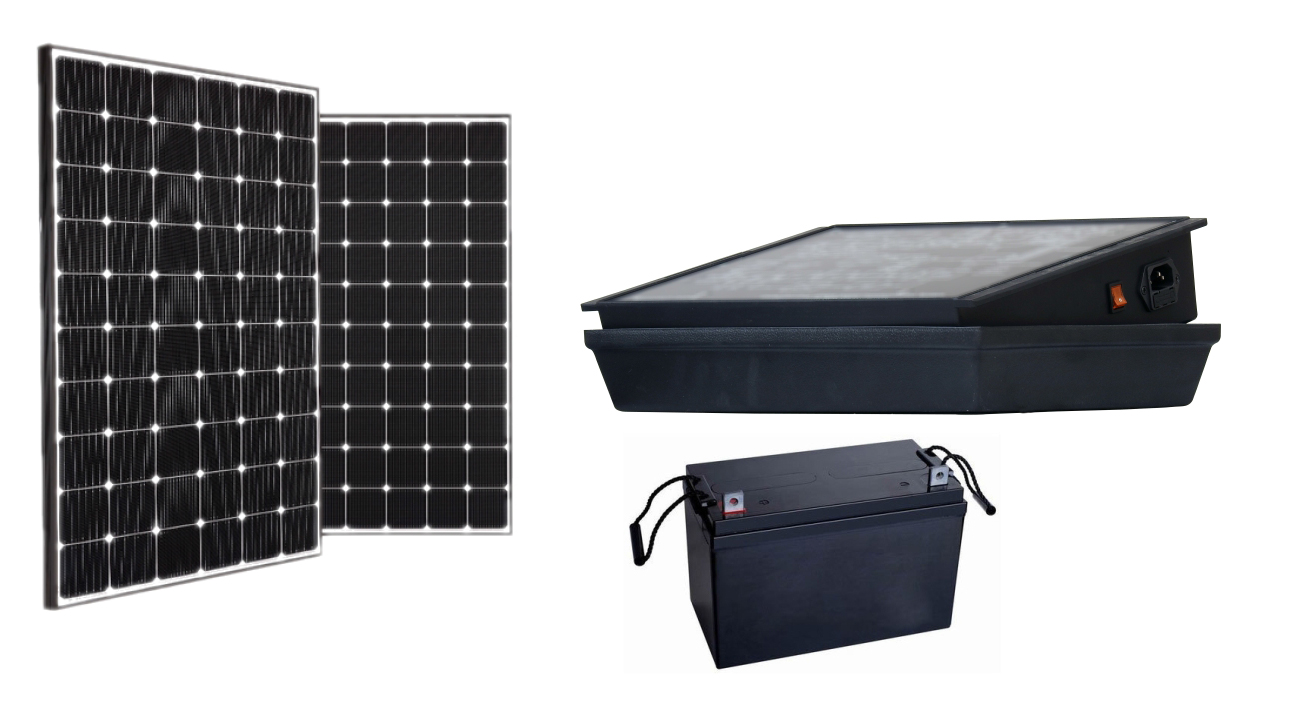

Product Description

This set up helps to understand PWM charge controller depending on-

• Time taken by battery to get fully charged
• To measure input power and output power to get efficiency of PWM charge controller
• Series and parallel combination of Solar Panels
• Effect of sun tracking at different angle of inclination

Product Features

• Performance analysis by comparing the output of the PV module with PWM controller.
• Display units for Voltage and current measurement.
• System integrated with PWM charge controller along with the batteries.
• Simple variable load demonstration by varying the rheostat.
