CAN (Controller Area Network) bus technology is revolutionising communication in automobile sector to meet the automobile industry needs. Before CAN system was introduced, each electronic device is connected to other devices using many wires to enable communication that relying on analog signals presented several limitations such as noise interference, slow data transfer and inability to easily integrate components from various manufacturers. CAN is a low cost, high-speed, serial communication protocol that allow ECUs (Electronic Control Unit) to communicate with each other without much complexity by just connecting each ECU to the common serial bus.

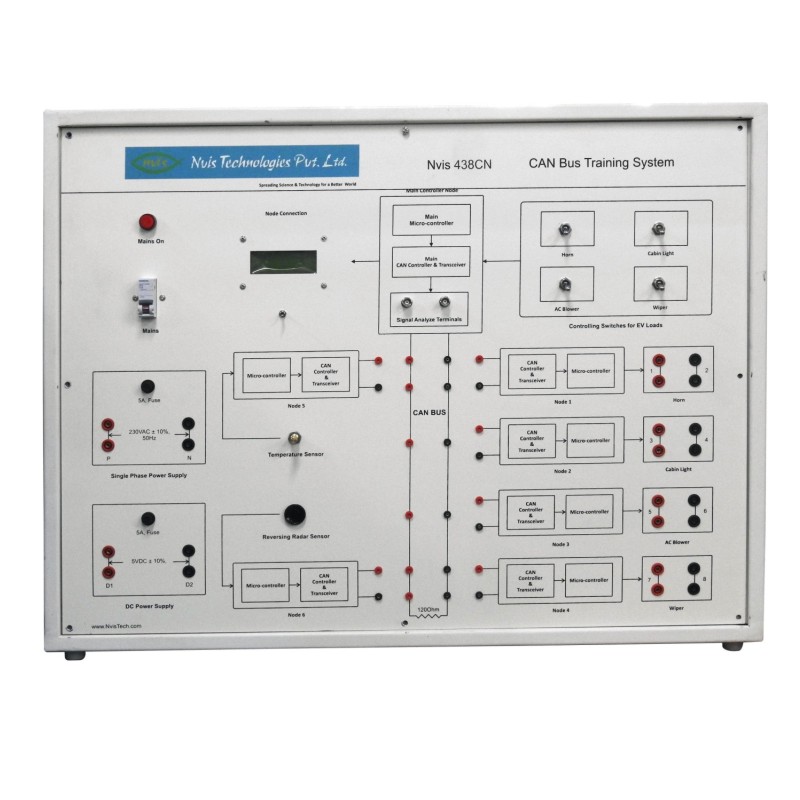

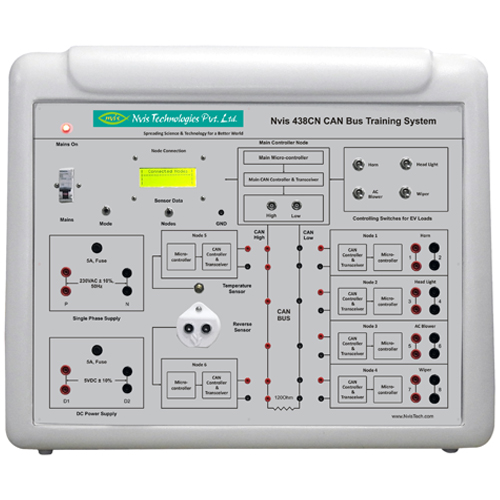

Nvis 438CN CAN BUS Protocol Training System is a versatile training system to explain the fundamentals of CAN BUS protocol used in automobile industries for data transmission between different sensors and control systems. It provides a comprehensive understanding of how various CAN nodes can be configured and control in vehicles. It includes a separate hardware which consists of various vehicle loads that can be controlled using CAN BUS system.

Features

• Complete understanding of CAN BUS protocols used in vehicles.
• Alphanumeric 20 x 4 Big Font LCD for better visibility
• Facility to detect connection & disconnection of vehicle nodes.
• Provided with vehicle loads like horn, cabin light, air conditioning blower, wiper.
• Diagrammatic representation for the ease of CAN operations.
• Equipped with vehicle sensors like thermo water temperature sensor, reversing radar sensor.
• Inbuilt SMPS based power supply for circuit operation
• Designed by considering all the safety standards
